CX8803 is a high voltage asynchronous buck converter with input voltages ranging from 9V to 80V.
Model No. :
CX8803Withstand voltage :
80VOutput voltage :
ADJOutput current :
2AWorking mode :
AsynchronousPackaging :

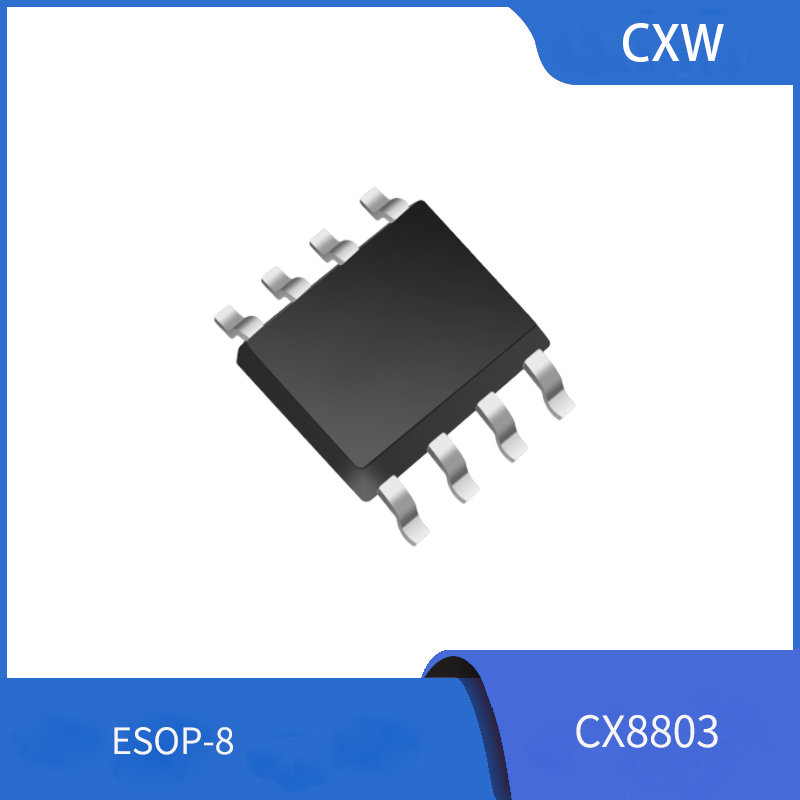

ESOP-880V input, 2A output, asynchronous buck converter
Summary:
CX8803 is a high voltage asynchronous buck converter with input voltages ranging from 9V to 80V.
The CX8803 integrates an 80V400m Ω high-voltage side MOSFET.
The CX8803 can provide a continuous load current of 2A, with an efficiency of up to 95%.
The CX8803 adopts a fixed frequency peak current control with built-in compensation, without the need for external components. The cycle by cycle current limit of high-end MOSFETs can protect the converter in case of overload. If the overcurrent condition lasts for more than the current time, it will trigger burp mode protection.
CX8803 has a protection function that can protect the load from faults such as undervoltage, overcurrent, and overheating.
Characteristic:
Input voltage range from 9V to 80V
Continuous output current of 1.5A
95% peak efficiency
400uA working static current
80V 400-m Ω high-voltage side MOSFET
Peak current mode control
150kHz fixed frequency
Easy to use internal compensation
Up to 92% duty cycle
0.8V voltage reference
1 µ A off current
3A cycle by cycle current limit
Short circuit protection function in 150ms burping mode
Thermal shutdown function

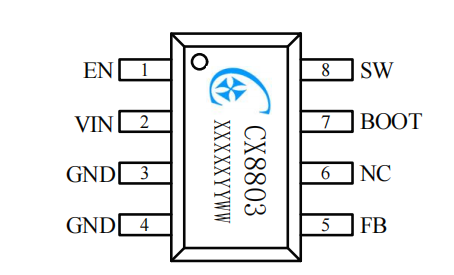

ESOP-8 Packaging

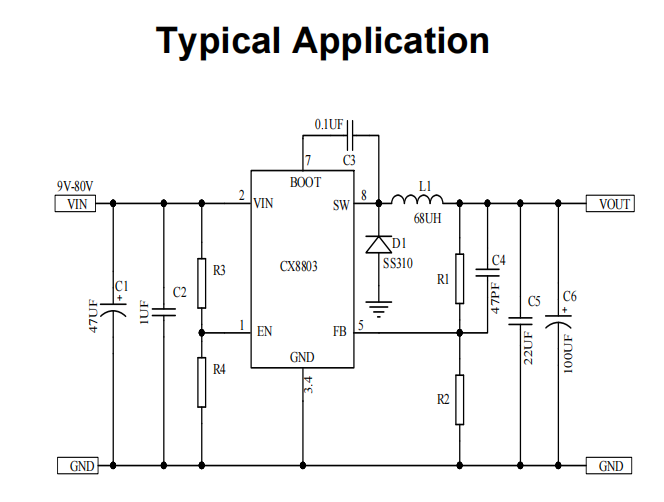

Application:
Car charger
Battery charger
The power adapter
