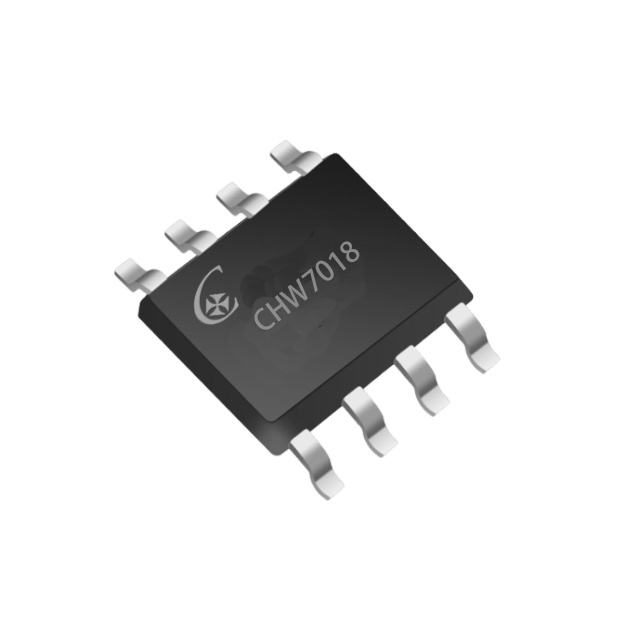

Model No. :
CHW7018Withstand voltage :
32VOutput voltage :
5VOutput current :
3.1AWorking mode :
synchronousPackaging :
SOP-8Summary:
CHW7018 is an input 8V-30V with built-in High side and Low side, capable of supporting a continuous output current of 3.1A. It has high-performance load response and input voltage response capabilities, as well as constant current and precise constant voltage control loops for load regulation and linear regulation.
CHW7018 does not require external compensation and can rely on its built-in stable loop to achieve constant current and constant voltage control.
CHW7018 is a constant voltage, constant current, and step-down DC-DC converter with minimal application excellent performance, and stable reliability.
Characteristic:
Input voltage 8V-30V
Input with overvoltage protection 32V
Built in High side
Built in Low side
Support 3.1A continuous output current
Built in constant current and constant voltage control loops
Constant voltage accuracy ± 3%
No external compensation required
135k Hz fixed switching frequency
Support for MLCC
Ultra simple application line
Short circuit protection (SCP), overheat protection (OTP), overcurrent protection (OCP), overvoltage protection (OVP)
SOP-8L packaging form
Application:
Car charger
Lighting lights
Portable device power supply
