45W USB-A+C GAN

Shenzhen CXW Technology Co., Ltd45W A+C GAN(PD+QC) BOMProject：45W A+C ...

Model No. :
45W USB-A+C GAN
Withstand voltage :
Output voltage :
Output current :
Working mode :
Packaging :

product details

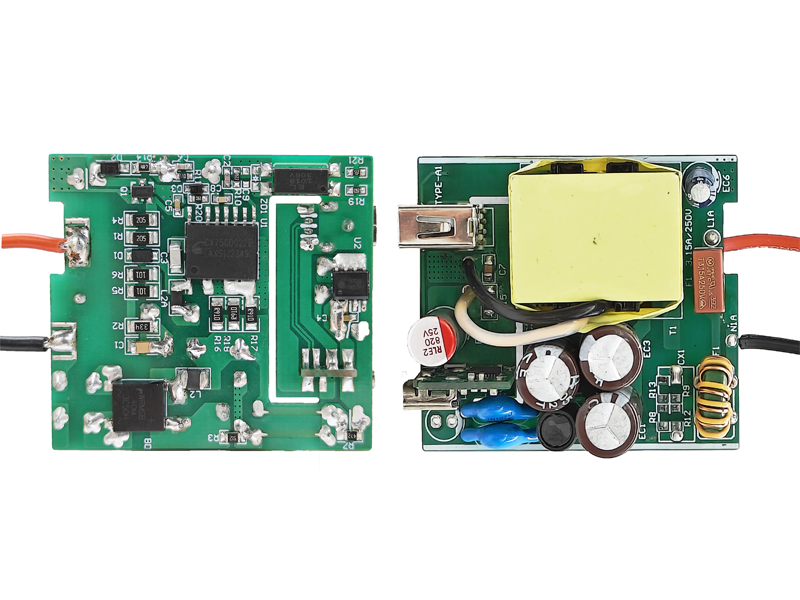

product PIC
Datesheet

Shenzhen CXW Technology Co., Ltd
45W A+C GAN(PD+QC) BOM
Project：45W A+C Version：V1.1
No.	Product Name	Specification	Bit No.	Package	Qty
1	SMD rectifier bridge	WRLSB40M/MSB	BD1	MSB	1
2	SMD Capacitor	222 10% 250V 0805 XR7	C1	0805	1
3	SMD Capacitor	225 10% 25V 0603 XR7	C2	0603	1
4	SMD Capacitor	102 10% 1KV 1206 XR7	C3	1206	1
5	SMD Capacitor	105 10% 25V 0805 XR7	C5	0603	1
6	SMD Capacitor	102 10% 50V 0603 XR7	C6	0603	1
7	SMD Capacitor	103 10% 50V 0603 XR7	C7, C10	0603	2
8	SMD Capacitor	104 10% 25V 0603 XR7	C8	0603	1
9	SMD Capacitor	105 10% 50V 0603 XR7	C9	0603	1
10	X Capactior	104/275AC 5*10mm	CX1	P=7.5mm	1
11	Y Capactior	102/K/AC400V	CY1, CY2	P=10mm	2
12	SMD Diodes	G2MF/SMAF	D1	SMAF	1
13	SMD Fast Recovery Diodes	F7/SOD-123FL	D2	SOD123	1
14	SMD Diodes	1N4148/SOD-323	D3	SOD-323	1
15	Electrolytic Capacitors	22uF/450V/10*17	EC1, EC2, EC3	EC-10*16	3
16	Electrolytic Capacitors	4.7uF/100V/5*11	EC4	EC-5*11	1
17	Solid State Capacitors	820uF/25V/6.3*18mm	EC5	EC-6.3*18	1
18	Fuse	T3.15AL250V P=5mm	F1	P=5mm	1
19	I-beam inductors	100uH/M/DR6*12	L2	L6/3	1
20	Common Mode Inductors	200uH, 633	LF1	LF6*3	1
21	Varistors	7D 561K	MOV1	P=10mm	1
22	Plug-in NTC	3D-7	NTC1	P=5mm	1
23	MOS IC	CX010N10	Q1	DFNSO8-5X6	1
24	MOS IC	DMZ1015E/SOT-23	Q2	SOT23	1
25	MOS IC	CX3419 DFN3*3	Q3, Q4	DFN3*3	2
26	MOS IC	2N7002 SOT23-3	Q5, Q6	SOT23	2
27	SMD Resistors	10R 5% 0805	R1	0805	2
28	SMD Resistors	3K 5% 0805	R31	0805	2
29	SMD Resistors	47K 5% 0603	R2, R21	0603	2
30	SMD Resistors	4.7R 5% 0603	R3	0603	1
31	SMD Resistors	47R 5% 0603	R4	0603	1
32	SMD Resistors	10K 5% 0603	R5, R18, R23, R26	0603	4
33	SMD Resistors	200K 5% 1206	R6	1206	1
34	SMD Resistors	51R 5% 1206	R7, R30	1206	2
35	SMD Resistors	4.7K 5% 0805	R8	0805	1
36	SMD Resistors	180K 1% 0603	R9	0603	1
37	SMD Resistors	0.62R 1% 1206	R10, R12	1206	2
38	SMD Resistors	2M 5% 1206	R11, R13	1206	2
39	SMD Resistors	6.2K 1% 0603	R14	0603	1
40	SMD Resistors	4.7R 5% 0805	R15	0805	1
41	SMD Resistors	100K 1% 0603	R20	0603	1
42	SMD Resistors	33K 1% 0603	R16	0603	1
43	SMD Resistors	1K 1% 0603	R17,R19	0603	2
44	SMD Resistors	100R 5% 0603	R24	0603	1
45	SMD Resistors	1K 5% 0603	R25,R29	0603	2
46	SMD Resistors	1M 5% 0603	R27	0603	1
47	SMD Resistors	2K 5% 0603	R32	0603	1
48	SMD Alloy Resistors	5mR 1W 1% 1206	RS1	1206	1
49	SMD Resistors	2M 5% 1206	RX1, RX2, RX3, RX4	1206	4
50	Transformer	ATQ2316-45W-A AE108.88mm	T1	ATQ2316(4+2)	1
51	TYPE-C	TYPE-C	Type-C1	Pin16	1
52	IC	EL1019	U1	SO-4	1
53	IC	CX75GD025E/ESOP-10W	U2	ESOP-10W	1
54	IC	CX7601/SOT23-6	U3	SOT-23-6	1
55	IC	TL432 SOT23-3	U4	SOT23	1
56	IC	CX2623B SSOP16	U5	SSOP16	1
57	USB A	USB,Side Insertion	USB1	USB	1
58	SMD stabilization diode	12V SOD-323	ZD1	SOD-323	1
59	SMD stabilization diode	9.1V SOD-323	ZD2	SOD-323	1
60	PCB	Main Board PCB			1
61	PCB	Daughter Board PCB			1
