65W 2C+1A

Shenzhen CXW technology Co., Ltd65W 2C1A BOM ListNO.Product NameSpecificationBit No.PackageQtyRemark1SMD capacitors102K/1000V/1206C1R120612SMD capacitors105/50V/0603C2, C3, C9, C14, C19, C20, C21, C23, C24, C25R0603103SMD capacitors22...

Model No. :
65W 2C+1A
Withstand voltage :
Output voltage :
Output current :
Working mode :
Packaging :

product details

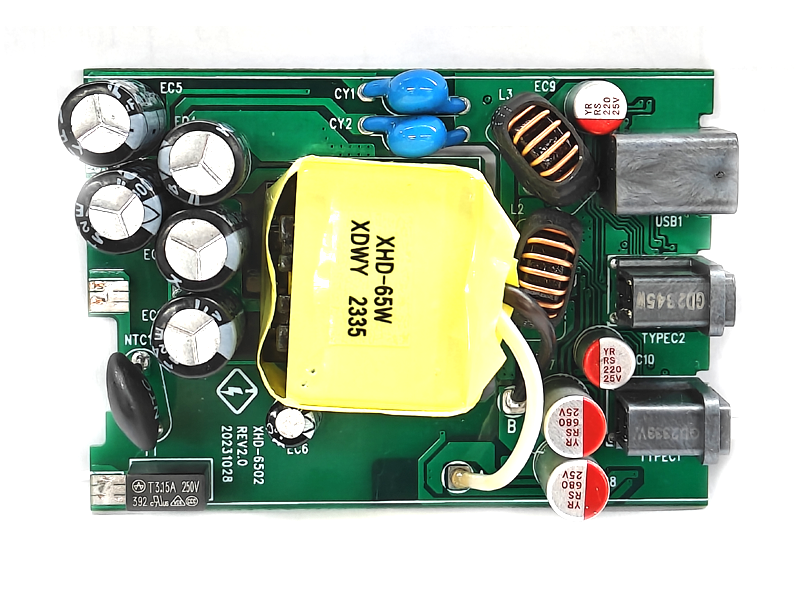

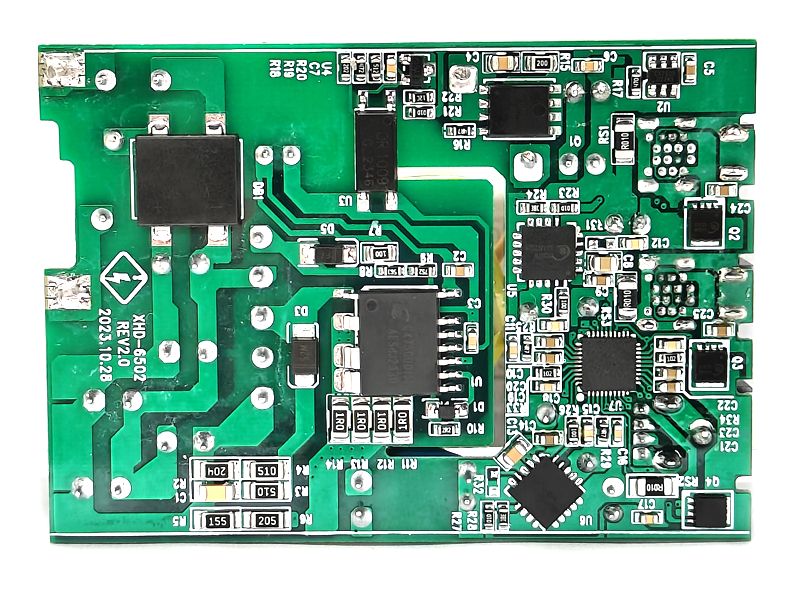

product PIC
Datesheet

Shenzhen CXW technology Co., Ltd
65W 2C1A BOM List

NO.	Product Name	Specification	Bit No.	Package	Qty	Remark
1	SMD capacitors	102K/1000V/1206	C1	R1206	1
2	SMD capacitors	105/50V/0603	C2, C3, C9, C14, C19, C20, C21, C23, C24, C25	R0603	10
3	SMD capacitors	222/250V/0805	C4	R0805	1
4	SMD capacitors	225/25V/0603	C5	R0603	1
5	SMD capacitors	104 50V/0603	C6	R0603	1
6	SMD capacitors	104/50V/0603	C7	R0603	1
7	SMD capacitors	10uF/25V/0805	C8, C13	R0805	2
8	SMD capacitors	104/50V/0603	C10, C12, C15, C17	R0603	4
9	SMD capacitors	102/50V/0603	C11, C16	R0603	2
10	SMD capacitors	103/50V/0603	C18, C22	R0603	2
11	Y capacitors	102/AC400V	CY1, CY2	P=10mm	2
12	SMD Diodes	1N4148/SOD-323	D1	SOD-323L	1
13	SMD Diodes	S2MF/SMAF	D3	SMAF	1
14	SMD Fast Recovery Diodes	FR107(F7)/SOD-323FL	D5	SOD123	1
15	SMD rectifier bridge	WRMSB80M	DB1		1
16	Electrolytic Capacitors	22uF/450V/8*16	EC1, EC2, EC3, EC4, EC5	EC-8*16	5
17	Electrolytic Capacitors	4.7uF/50V/4*7	EC6	EC-4*7	1
18	Solid State Capacitors	820uF/25V/6.3*18	EC7, EC8	EC-6.3*18	2
19	Solid State Capacitors	220uF/25V 5.5*8mm	EC9, EC10	EC-5.5*10	2
20	Fuse	T3.15AL250V	F1		1
21	Ferrosilicon Aluminium Inductors	33uH/M/T10.54.755.82	L2, L3		2
22	Thermistors	3D-11	NTC1		1
23	MOS IC	CX010N10	Q1	DFNSO8-5X6	1
24	MOS IC	CX3426B DFN3*3	Q2, Q3, Q4	DFN3*3	3
25	SMD Resistors	200K 1206	R2	R1206	1
26	SMD Resistors	51R 1206	R3, R4	R1206	2
27	SMD Resistors	2M 1206	R5	R1206	1
28	SMD Resistors	2M 1206	R6	R1206	1
29	SMD Resistors	10R 0805	R7	R0805	1
30	SMD Resistors	150K 0603	R8	R0603	1
31	SMD Resistors	8.2K 0603	R9	R0603	1
32	SMD Resistors	2.2R 0603	R10	R0603	1
33	SMD Resistors	1.3R/1% 1206	R11, R12	R1206	2
34	SMD Resistors	1.3R 1% 1206	R13	R1206	1
35	SMD Resistors	1.3R 1%1206	R14	R1206	1
36	SMD Resistors	10RJ0805	R15	R0805	1
37	SMD Resistors	4.7RJ0603	R16	R0603	1
38	SMD Resistors	47RJ0603	R17	R0603	1
39	SMD Resistors	2K 0603	R18	R0603	1
40	SMD Resistors	4.7K 0603	R19	R0603	1
41	SMD Resistors	5.1K 0603	R20	R0603	1
42	SMD Resistors	100K 1% 0603	R21, R23, R27	R0603	3
43	SMD Resistors	13K 1% 0603	R22	R0603	1
44	SMD Resistors	24.3K 1% 0603	R24, R28	R0603	2
45	SMD Resistors	4.7R 0603	R25, R29	R0603	2
46	SMD Resistors	10R 0603	R26, R30	R0603	2
47	SMD Resistors	NC	R31, R32	R0603	2
48	SMD Resistors	1K 0603	R33, R34	R0603	2
49	Chip Alloy Resistors	10mR 1W 1% 1206	RS1, RS2, RS3	R1206	3
50	Transformer	ATQ23.7	T1	T-ATQ23.7	1
51	TYPEC	TYPEC	TYPEC1, TYPEC2		2
52	SMD IC	CX75GD015E ESOP-10	U1	ESOP-10W	1
53	SMD IC	CX7601/SOT23-6	U2	SOT-23-6	1
54	SMD IC	EL-1019	U3	SO-4	1
55	SMD IC	TL431	U4	SOT23	1
56	SMD IC	CX8576 QFN20-5*5	U5, U6	QFN20-5*5	2
57	Protocol IC	HUSB390	U7	QFN5X5-40L	1
58	USB	USB	USB1		1
59	PCB				1

未标题-3

未标题-2
