30W USB-A+C GaN

SHENZHEN CHENGXINWEI TECHNOLOGY CO., LTD.CX75GE030DI+CX7538D 30W A+C Demo Board Manual30W A+C GaN BOMNo.CategorySpecificationBit NumberPackingQtyMAKEMPQ备注1SMD capacitor 102 250V 0805C108051...

Model No. :
30W USB-A+C GaN
Withstand voltage :
Output voltage :
Output current :
Working mode :
Packaging :

product details
product PIC
Datesheet

SHENZHEN CHENGXINWEI TECHNOLOGY CO., LTD. CX75GE030DI+CX7538D 30W A+C Demo Board Manual
30W A+C GaN BOM
No.	Category	Specification	Bit Number	Packing	Qty	MAKE	MPQ	备注
1	SMD capacitor	102 250V 0805	C1	0805	1	FH	4000
2	SMD capacitor	102 1KV 1206	C2	1206	1	FH	3000
3	SMD capacitor	225 25V 0603	C3	0603	1	FH	4000
4	SMD capacitor	105 25V 0603	C4，C8,C9, C10,C11	0603	5	FH	4000
5	SMD capacitor	102 50V 0603	C5	0603	1	FH	4000
6	SMD capacitor	220 1KV 1206	C14	1206	1	FH	3000
7	SMD capacitor	104 50V 0805	C7	0805	1	FH	4000
8	SMD capacitor	104 50V 0603	C12	0603	1	FH	4000
9	SMD capacitor	103 50V 0603	C13	0603	1	FH	4000
10	Y capacitor	102 400V P=10mm	CY1	P=10mm	1	KNS	1000
11	SMD Diode	A7/SOD-123	D1	SOD-123F	1	JXND	3000
12	SMD Fast Recovery Diodes	F7/SOD-323	D2	SOD-323	1	JXND	3000
13	SMD Rectifier Bridge	Z4RGP3A	DB1	Z4PAK	1			确认规格封装
14	Electrolytic capacitor	22uF/400V/8*16mm	EC1	8*17mm	1	HYNC	500	8*16
15	Electrolytic capacitor	33uF/400V/10*18mm	EC2	10*18mm	1	HYNC	500	10*17
16	Electrolytic capacitor	4.7uF 100V 5*11mm	EC3	5*11mm	1	HYNC	1000
17	Solid State Capacitors	680UF/25V 6.3*16mm	EC4	6.3*15mm	1	HYNC	1000	6.3*14
18	Fuse	T2AL 250V P=5mm	F1	P=5mm	1	better	1000
19	Common Mode Inductors	T633 200UH φ 0.3mm*7T	L1	P=2.5mm	1	LGW	1000
20	I-beam Inductor	DR4*10 120uH	L2	P=2mm	1	LGW	3000
21	thermistor	3D-7 P=5mm	NTC1	P=5mm	1	RUILON	1000
22	SMD MOS	CX1015 SOT-23	Q2	SOT-23	1			确认型号
23	SMD Resistors	5.1K 5% 0805	R1	0805	1	FH	5000
24	SMD Resistors	10R 5% 0805	R2	0805	1	FH	5000
25	SMD Resistors	2M 5% 0805	R3 R5	0805	2	FH	5000
26	SMD Resistors	330K 5% 1206	R4	1206	1	FH	5000
27	SMD Resistors	100R 5% 1206	R6	1206	1	FH	5000
28	SMD Resistors	3R 5% 0603	R7	0603	1	FH	5000
29	SMD Resistors	1.3R 1% 1206	R8 R9	1206	2	FH	5000
30	SMD Resistors	1.0R 1% 1206	R10	1206	1	FH	5000
31	SMD Resistors	127K 1% 0603	R11	0603	1	FH	5000
32	SMD Resistors	5.6K 1% 0603	R12	0603	1	FH	5000
33	SMD Resistors	1K 5% 0603	R15, R16	0603	2	FH	5000
34	SMD Resistors	NC	R17	0603	1			确认实物
35	SMD Resistors	2K 5% 0603	R18	0603	1	FH	5000
36	SMD Resistors	5.1K 5% 0603	R19	0603	1	FH	5000
37	SMD Resistors	NC	R20	0603	1			确认实物
38	SMD Resistors	33K 1% 0603	R21	0603	1	FH	5000
39	SMD Resistors	100K 1% 0603	R22	0603	1	FH	5000
40	SMD Alloy Resistors	10mR 1W 1% 1206	RS1, RS2	1206	2	TA-I	5000
41	Transformers	ATQ18 LP=0.55mH	T1	ATQ18(4+3PIN)	1			提供图纸
42	SMD Type-C	Type-C	Type-C	TYPE-C(16PIN)	1
43	CXW IC	CX75GE030DI-DTSO7L	U1	DT-SO7L	1
44	CXW IC	EL1019 SO-4	U2	SO-4	1
45	CXW IC	CX7538D	U3	DT-SO7L	1
46	CXW IC	CX2919AC	U4	QFN4X4_32	1
47	Side-plug USB	USB	USB1	USB	1
48	PCB Board	38.534.51.0mm FR-4 double layers			1
49	PCB small board	18131.0mm FR-4 double layers			1

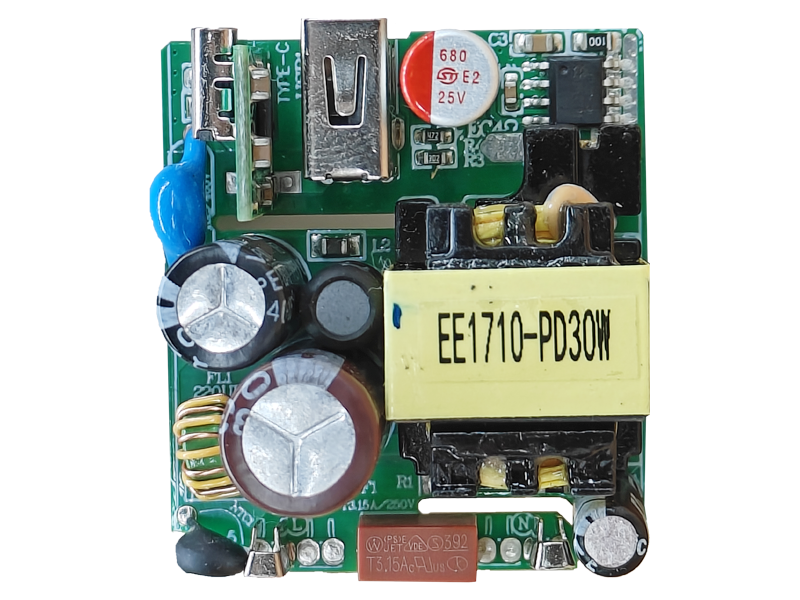

30W AC GAN-1

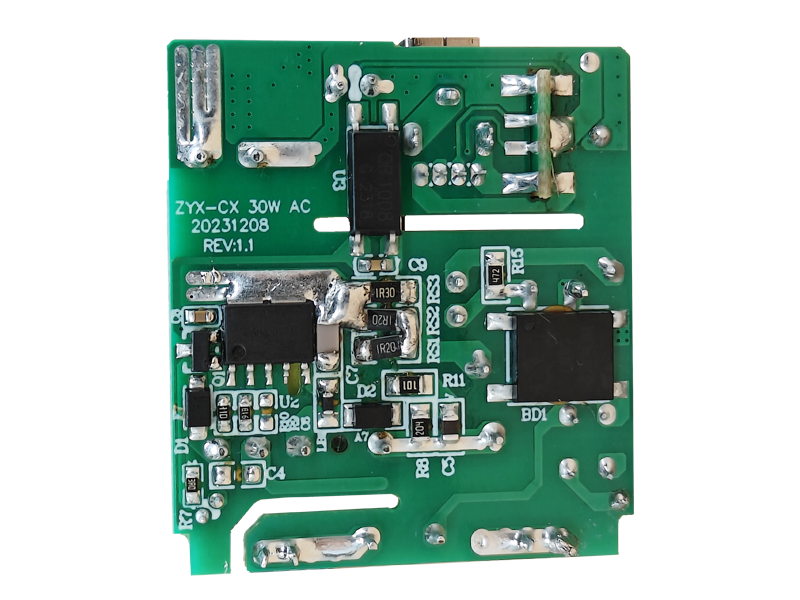

30W AC GAN-2
